中文简体Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.
.jpg)
.jpg)
-1.jpg)

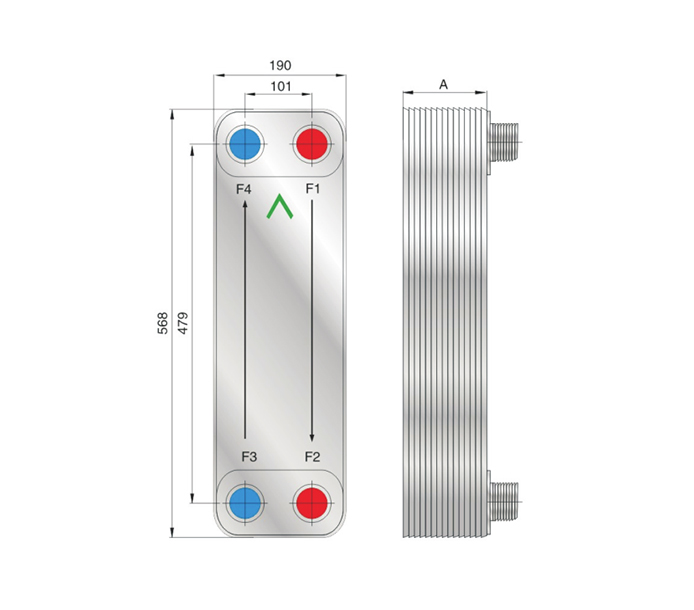

| Model | Number | Design pressure 4.5 | Design pressure ≤3.0 | Weight（kg） | Volume（L） | Heat exchange area（m2） | |
| A（mm） | A（mm） | F1F2side | F3F4side | ||||
| FHC090 | n | 15+2.4n | 11+2.4n | 4.2+0.40n | 0.193*1/2n | 0.193*1/2（n-2） | （n-2）0.090 |
| Design pressure(Mpa) | 3.0 / 4.5 |
| Testing pressure(Mpa) | 4.5 / 6.75 |
| Design temperature(℃） | -196~200 |
| Max flow | 35m3/h |
| Max plate numbers | 250 |
| Max connection size | 2" |
| Plate Material | SS304/SS316 |
| Connection Material | SS304 |
| Brazing Material | 99.9% pure copper/Steel |
| Plate type | H |
| Distributor | Q |
| Connection type | Threaded, Solder, Flange |
| Approval | CE, UL, PED, ISO9001, ISO14001 |
| Packing | EPE foam,carton or polywood case |
| Mounting Bracket(Optional) | Studs, bracket, feet |
