FHC052G
FHC052G

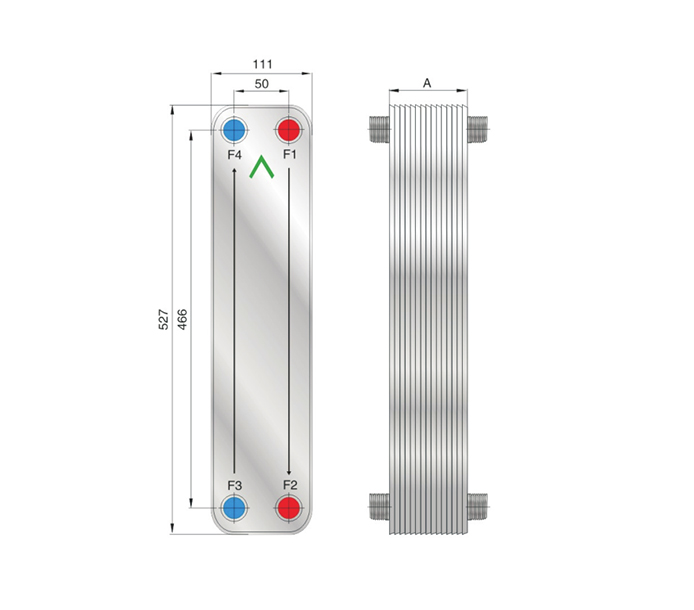

Brazed Plate Heat Exchangers-FHC052G

Design pressure: 3.0Mpa/4.5Mpa

Test pressure: 4.5Mpa/6.75Mpa

Design temperature: -196~200 °C

Maximum flow: 15m3/h

Quantity of max plates:150

Pipe Size:1"1/4'

Channel: H

Distributor: Q

FHC052G PDF

Return Feedback
Product Details
FHC052G_01 FHC052G_02tongyong03 tongyong04 tongyong05 tongyong06 tongyong07 tongyong08
