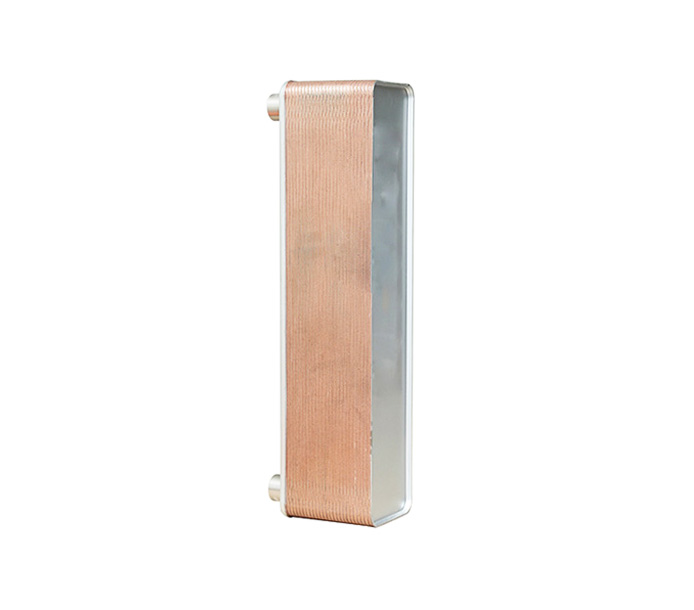

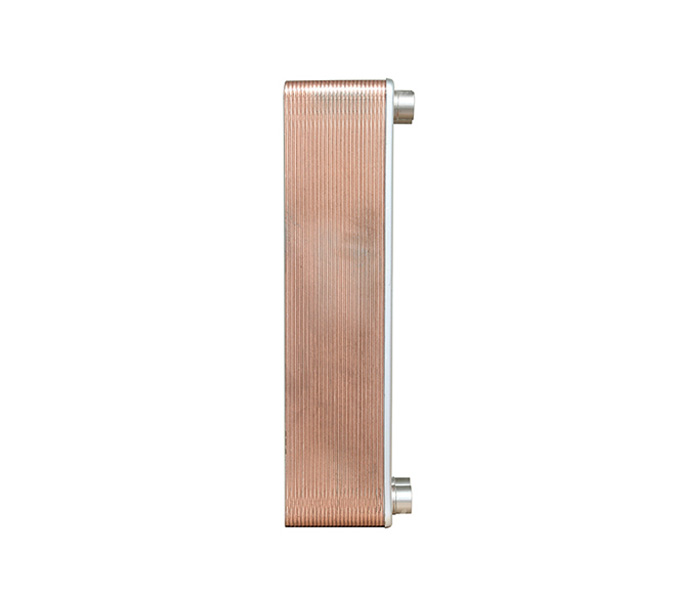

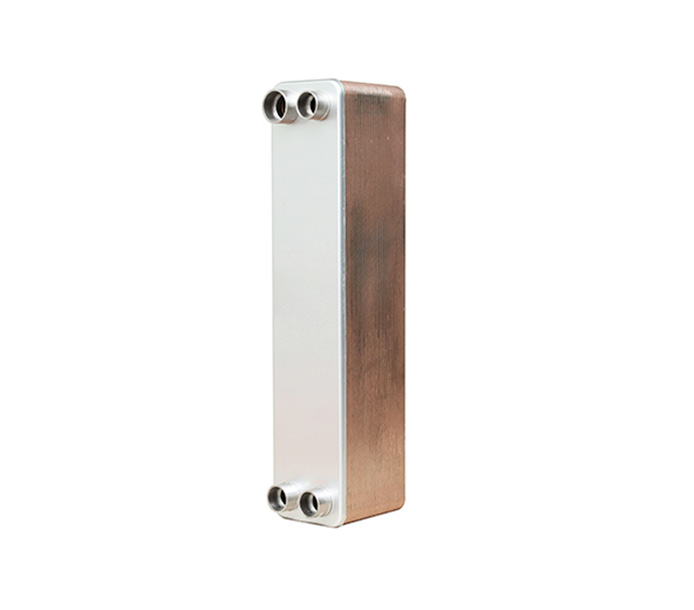

Evaporator For Heat Pump FHC052

Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.
  • Specifications

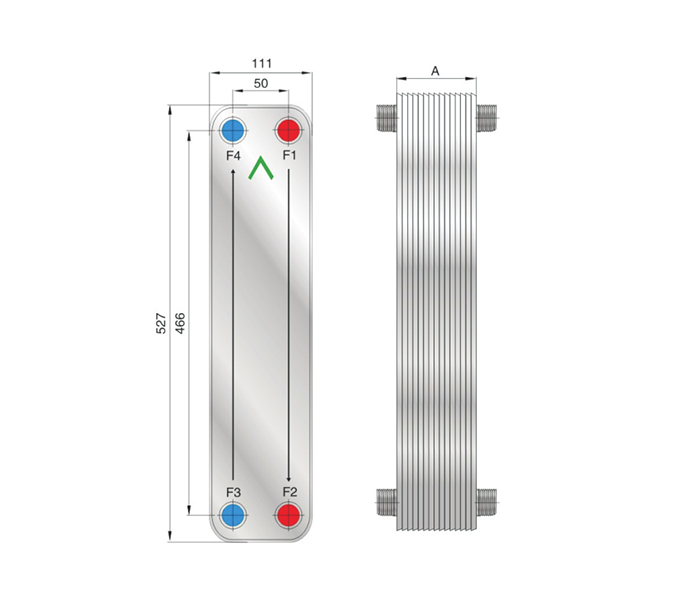

Model Number Design pressure 4.5 Design pressure ≤3.0 Weight(kg) Volume(L) Heat exchange area(m2
A(mm) A(mm) F1F2side F3F4side
FHC052 n 11+2.4n 9+2.4n 1.8+0.23n 0.094*1/2n 0.094*1/2(n-2) (n-2)0.052

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃)  -196~200
Max flow 18m3/h
Max plate numbers 150
Max connection size 1" 1/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H / M / L
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
