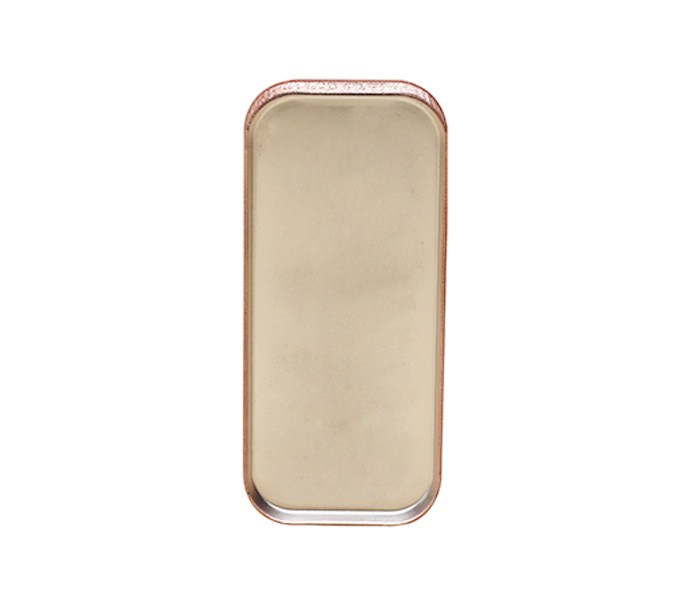

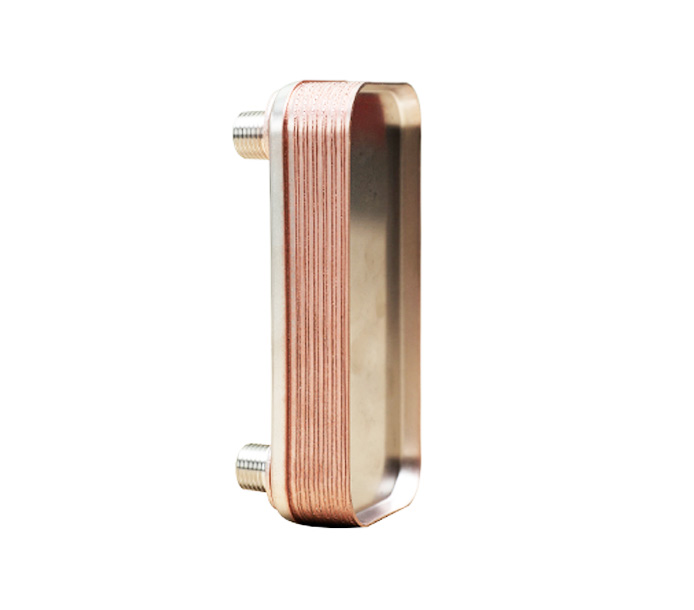

Micro Plate Heat Exchanger FHC003G

Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.
  • Specifications

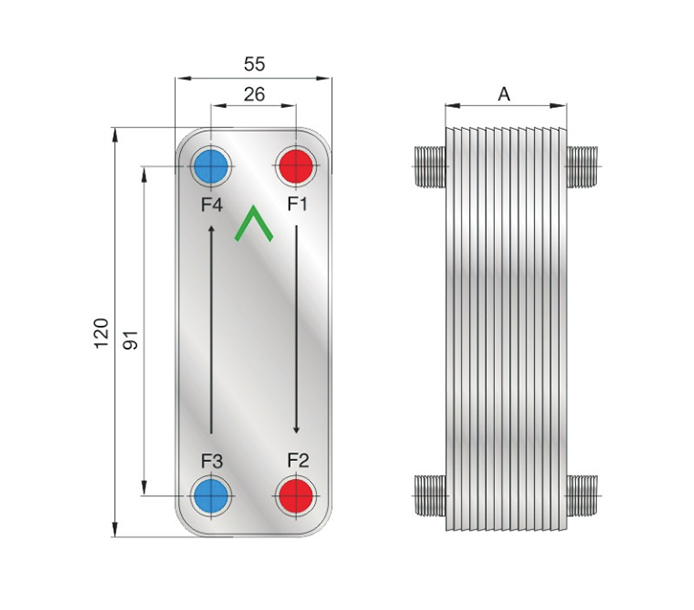

Model Number Size Weight（kg） Volume（L） Heat exchange area（m2）
A（mm） F1F2side F3F4side
FHC003G n 8+1.3n 0.11+0.016n 0.006*1/2n 0.006*1/2（n-2） （n-2）0.003

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 2m3/h
Max plate numbers 60
Max connection size 1/2"
Plate Material SS304
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
