Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.

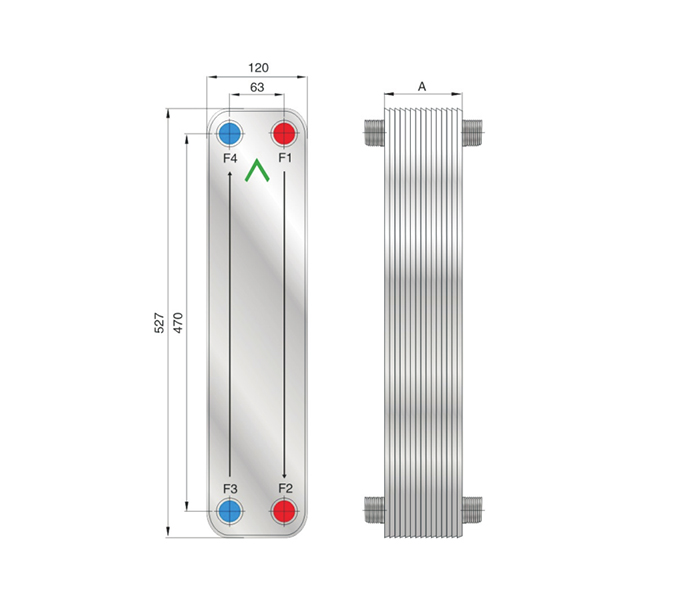

Model | Number | Design pressure 4.5 | Design pressure ≤3.0 | Weight(kg) | Volume(L) | Heat exchange area(m2) | |
A(mm) | A(mm) | F1F2side | F3F4side | ||||
FHC085G | n | 14.5+1.9n | 12.5+1.9n | 3.2+0.164n | 0.093*1/2n | 0.093*1/2(n-2) | (n-2)0.060 |
Design pressure(Mpa) | 3.0 / 4.5 |
Testing pressure(Mpa) | 4.5 / 6.75 |
Design temperature(℃) | -196~200 |
Max flow | 18m3/h |
Max plate numbers | 150 |
Max connection size | 1" 1/4" |
Plate Material | SS316 |
Connection Material | SS304 |
Brazing Material | 99.9% pure copper/Steel |
Plate type | H |
Distributor | Q |
Connection type | Threaded, Solder, Flange |
Approval | CE, UL, PED, ISO9001, ISO14001 |
Packing | EPE foam,carton or polywood case |
Mounting Bracket(Optional) | Studs, bracket, feet |
