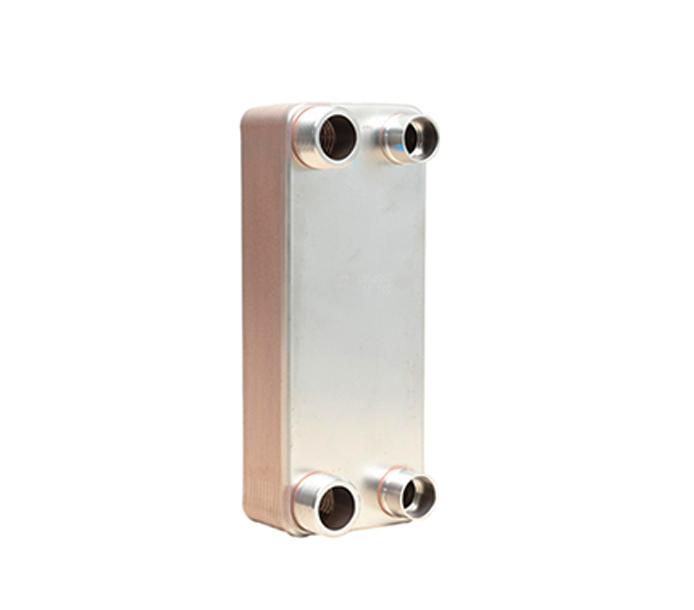

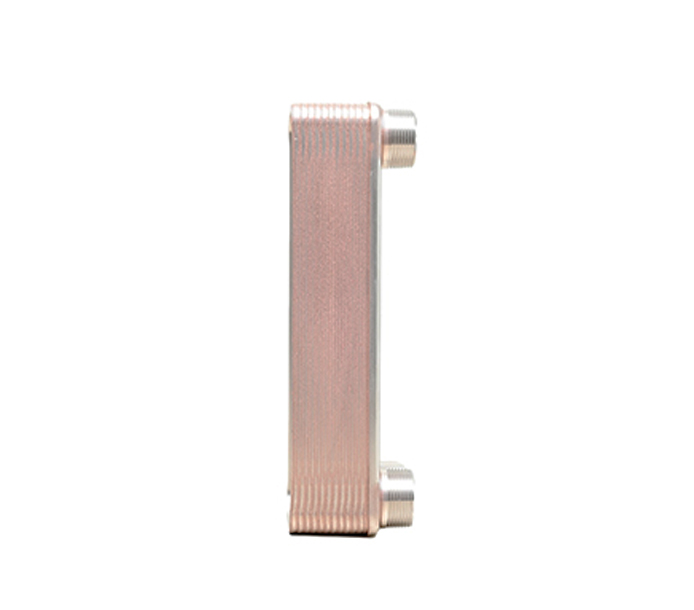

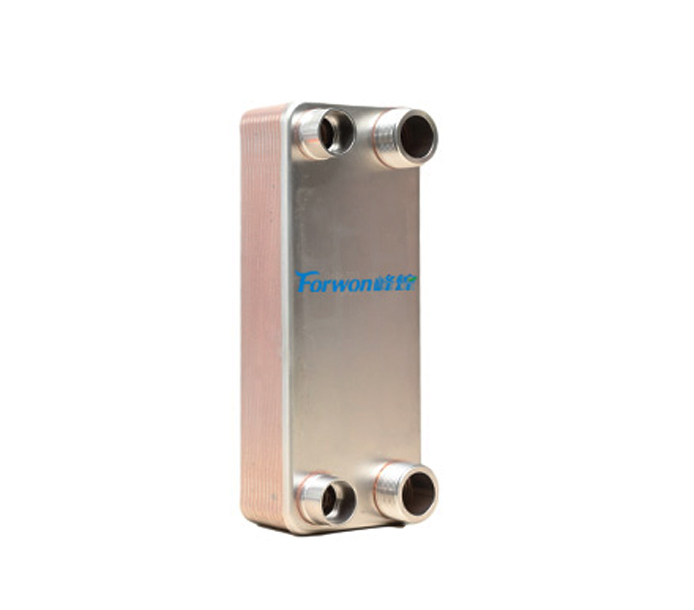

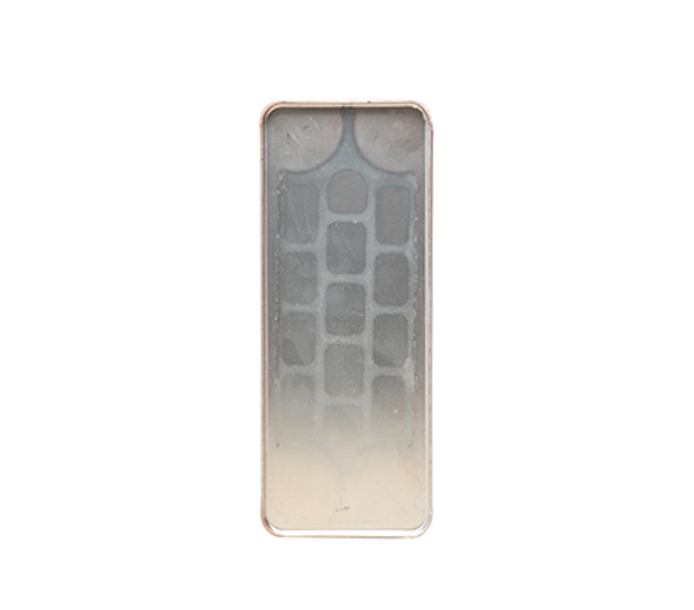

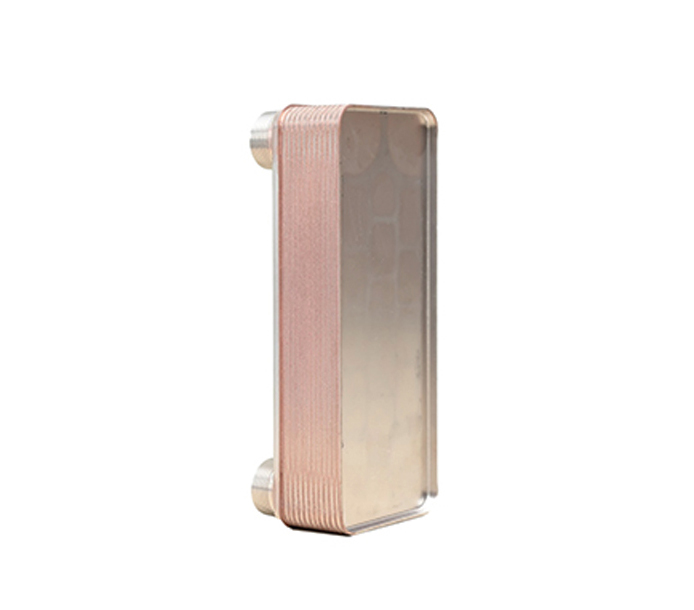

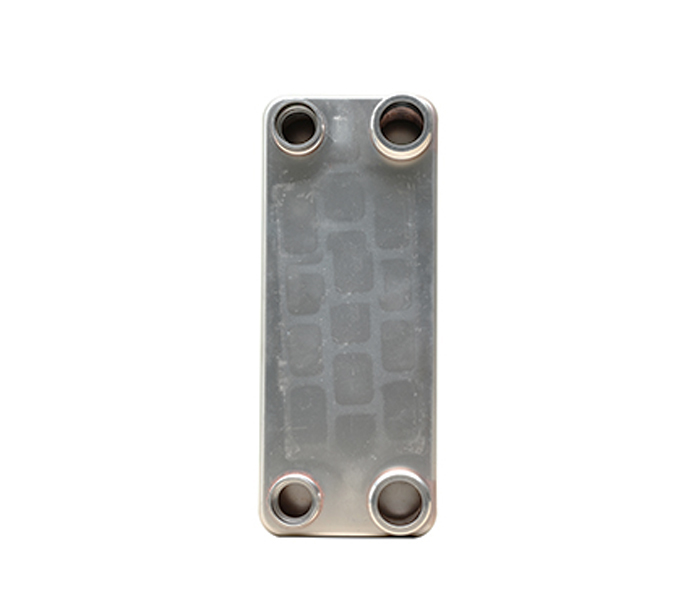

FHC030B

FHC030B's unique aspect ratio design combines external dimensions and center distance dimensions. This model has a high center distance and is available for large size connections to reduce the flow rate and improve the heat exchange performance for the large flow system.
  • Specifications
Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC030B n 11+1.55n 9+1.55n 9+0.09n 0.028*1/2n 0.028*1/2（n-2） （n-2）0.030

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 12m3/h
Max plate numbers 150
Max connection size 1" 1/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
