FHC028

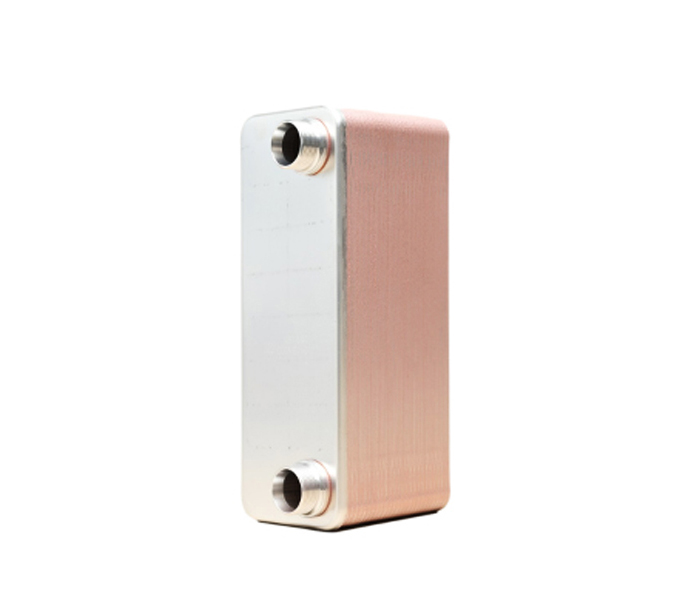

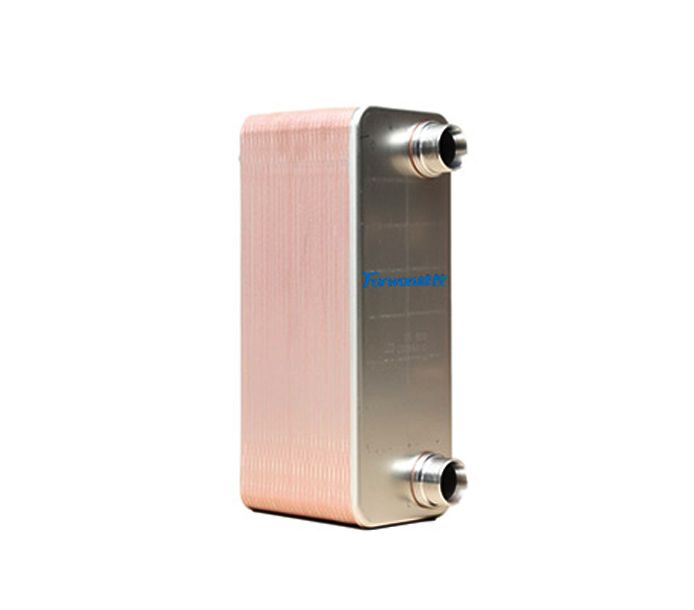

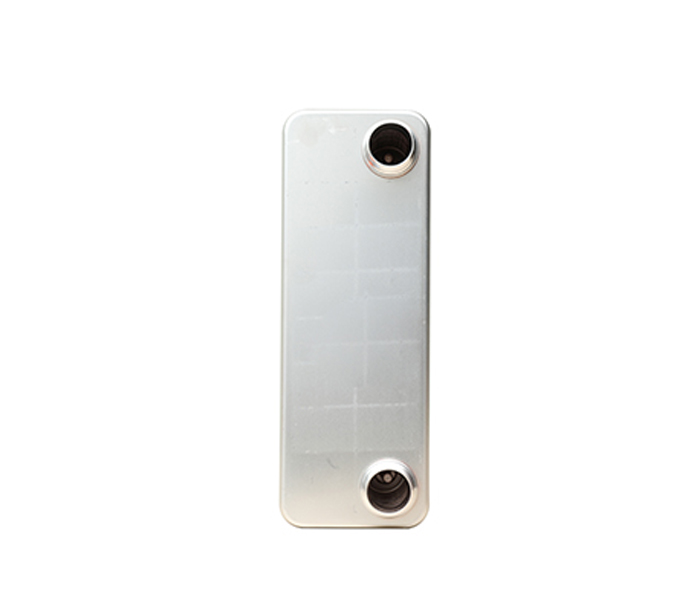

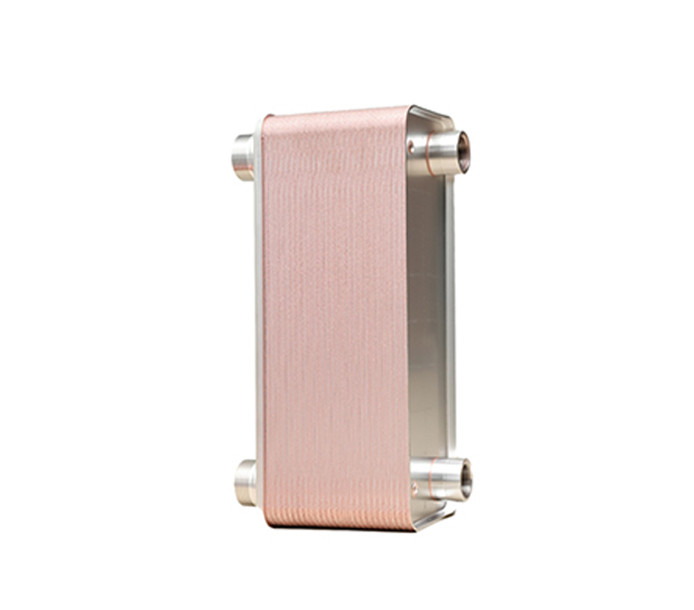

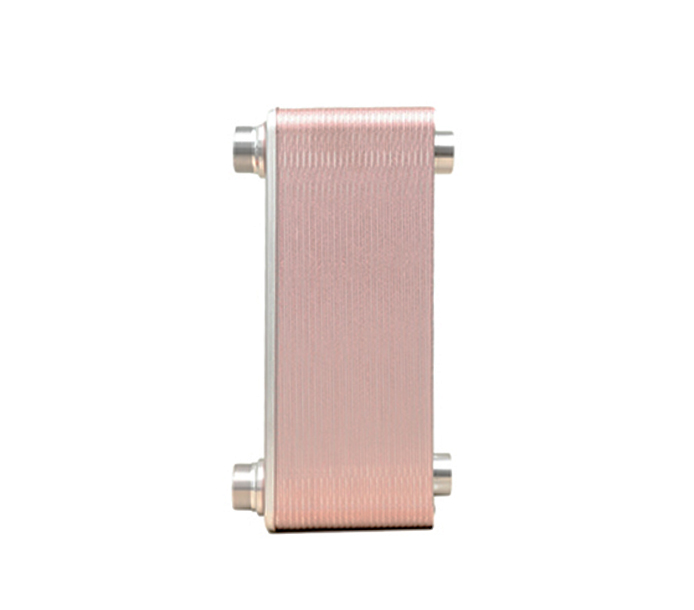

FHC028 is a brazed plate heat transfer with a combination of low pressure drop and high heat transfer performance. It can be used in small water chillers, oil coolers and other systems. At the same time, it's also a good choice for the two-in-one refrigeration and dryer system.
  • Specifications

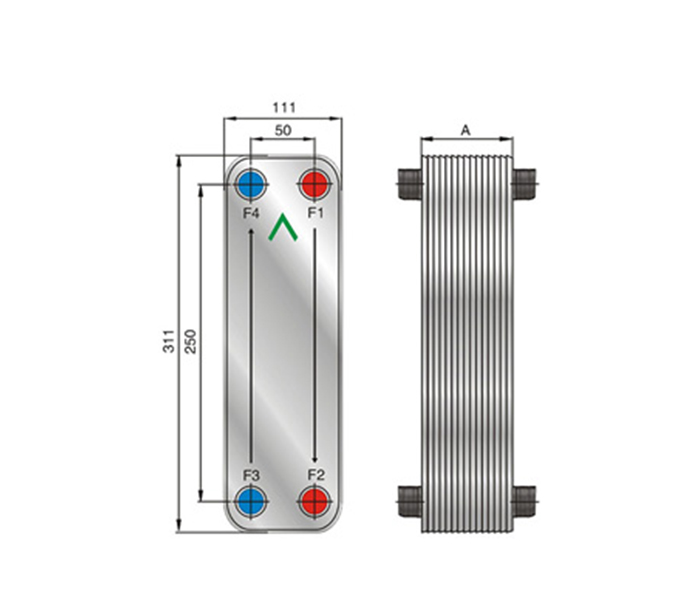

Model Number Design pressure 4.5 Design pressure ≤3.0 Weight(kg) Volume(L) Heat exchager area(m2
A(mm) A(mm) F1F2side F3F4side
FHC028 n 11+2.3n 9+2.3n 1.2+0.10n 0.050*1/2n 0.05*1/2(n-2) (n-2)0.028

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃)  -196~200
Max flow 18m3/h
Max plate numbers 150
Max connection size 1" 1/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H / M / L
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
