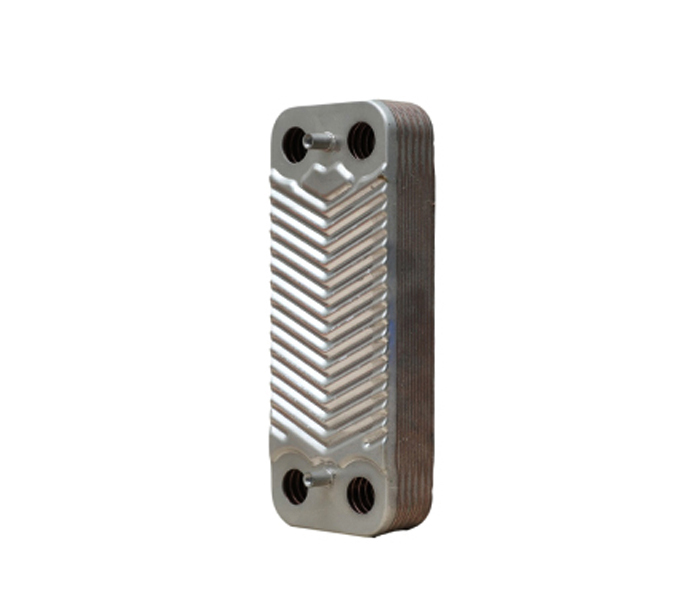

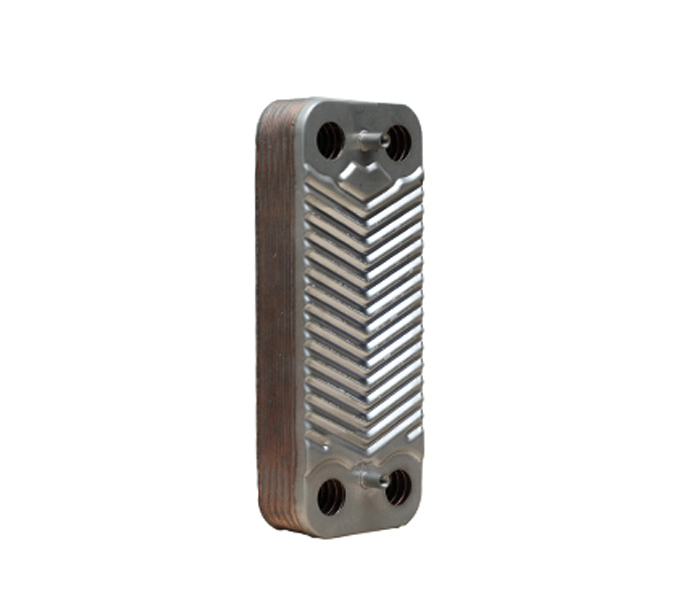

FHC012

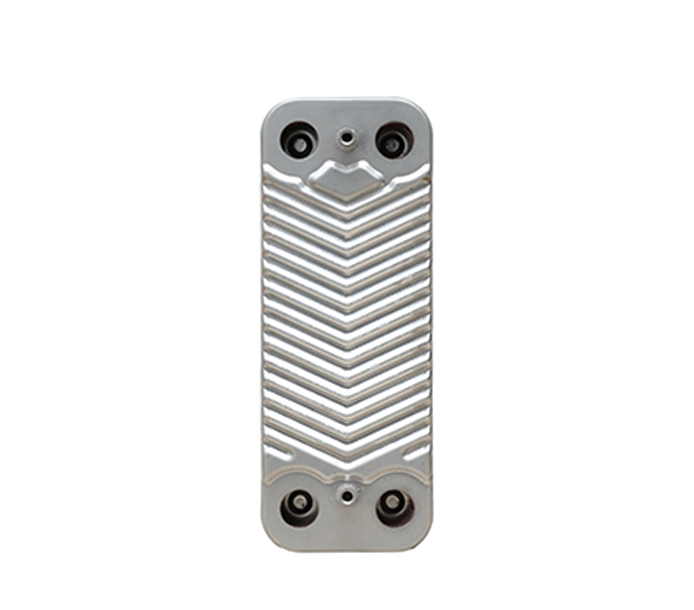

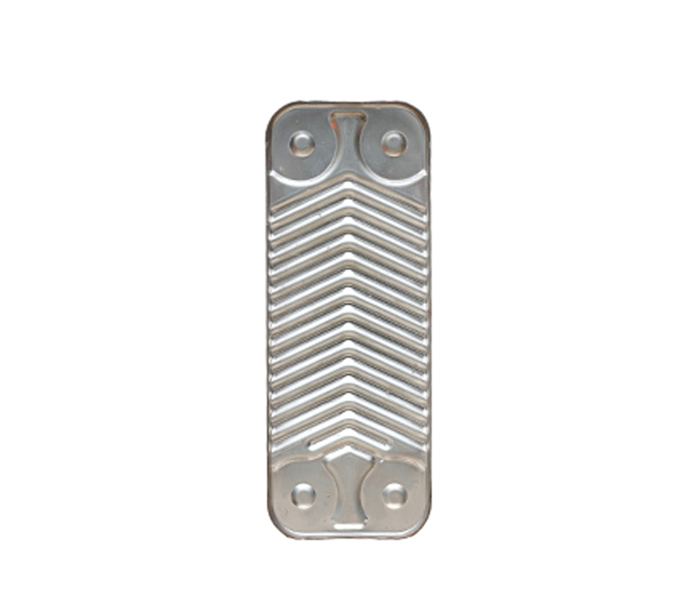

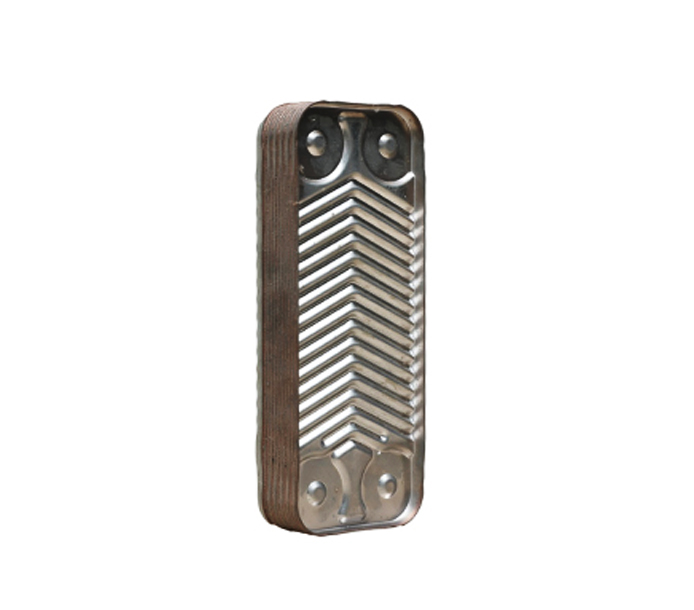

The compact FHC012 is specially developed for wall-hung boiler applications. Because of the unique corrugated,corner hole design and the integrated sealing plate, the sealing plate also conducts heat transfer which is conducive to reducing the number of pieces and making the installation more convenient, providing a higher cost effectiveness and more compact solutions.
  • Specifications

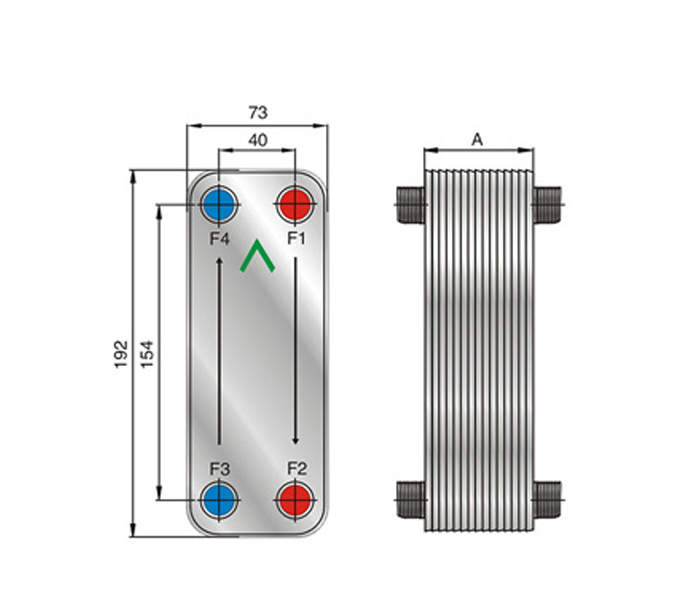

Model Number Corrugated sealing back cover Flat back cover Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC012 n 11+2.3n 9+2.3n 0.4+0.044n 0.018*1/2n 0.018*1/2（n-2） （n-2）0.012

Design pressure(Mpa) 1.0 / 3.0
Testing pressure(Mpa) 1.5 / 4.5
Design temperature(℃）  -196~200
Max flow 4m3/h
Max plate numbers 50
Max connection size 3/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
