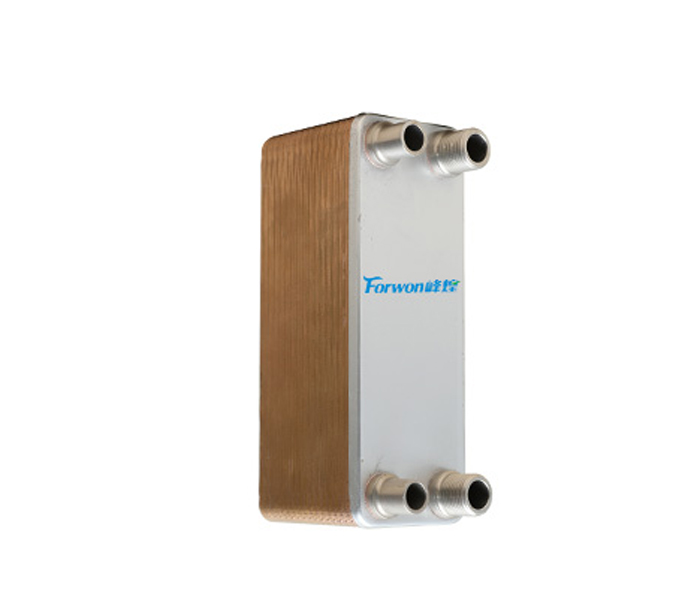

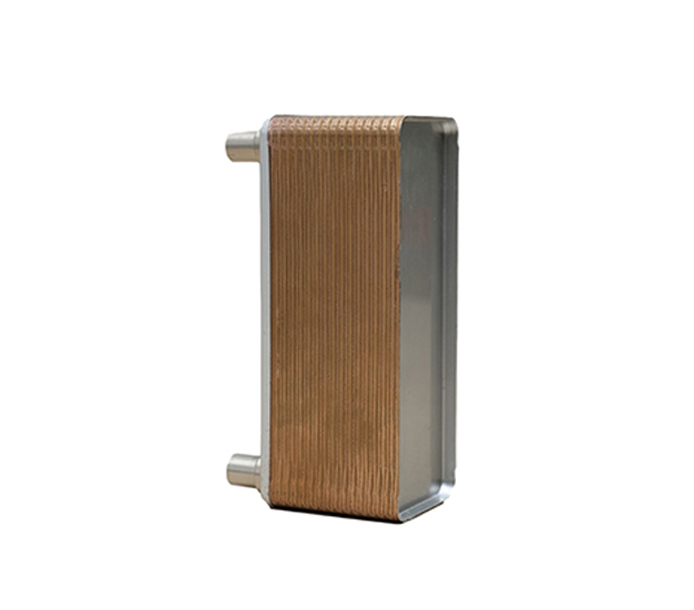

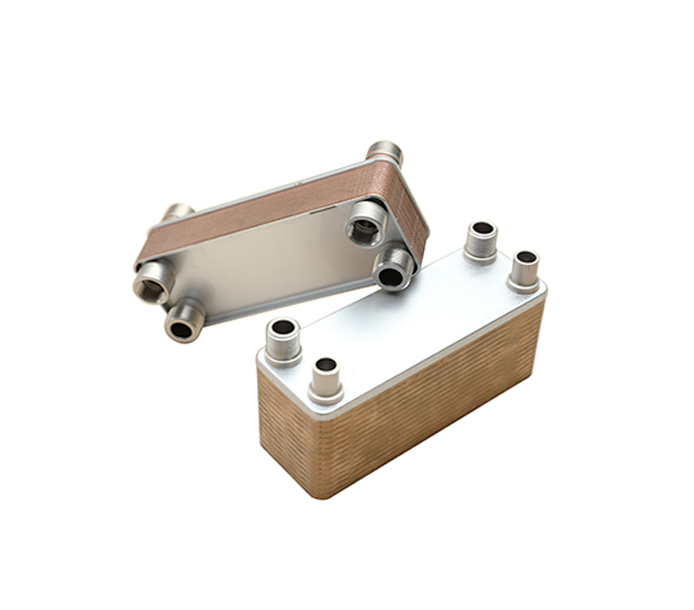

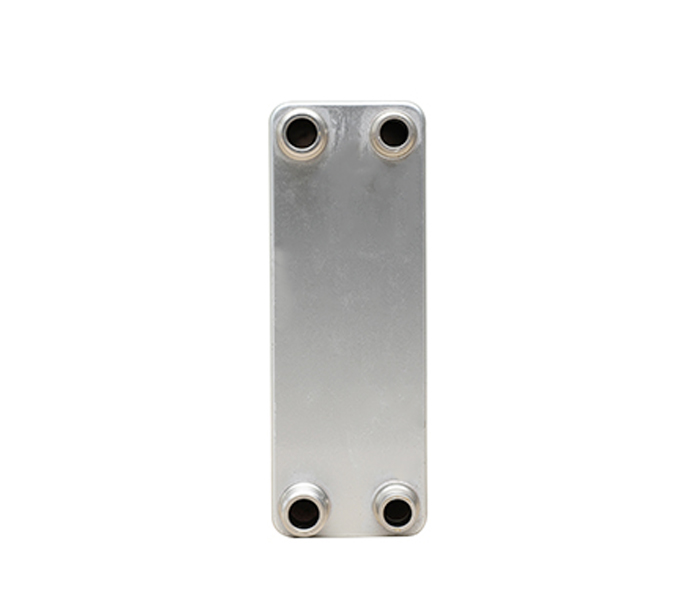

FHC014 is a multi-application and flexible brazed plate heat exchanger. It can be applied to small flow and high pressure systems. It can be applied to R410a system as evaporator and condenser. This BPHE is easy to install and use.

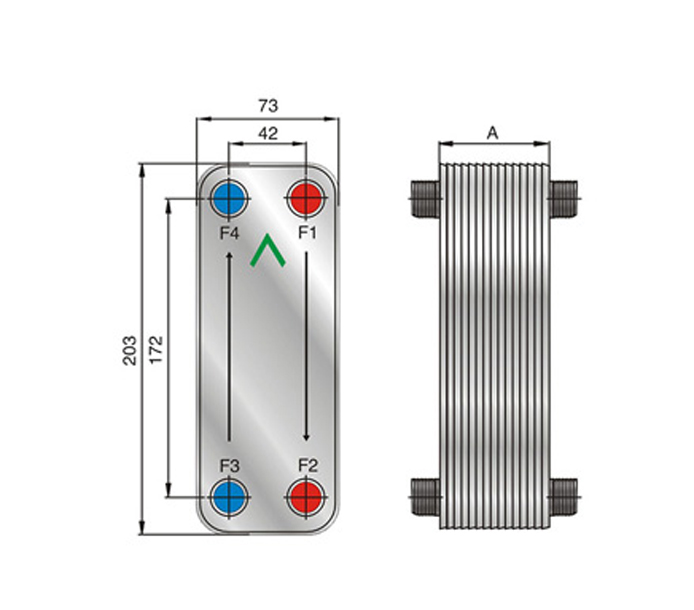

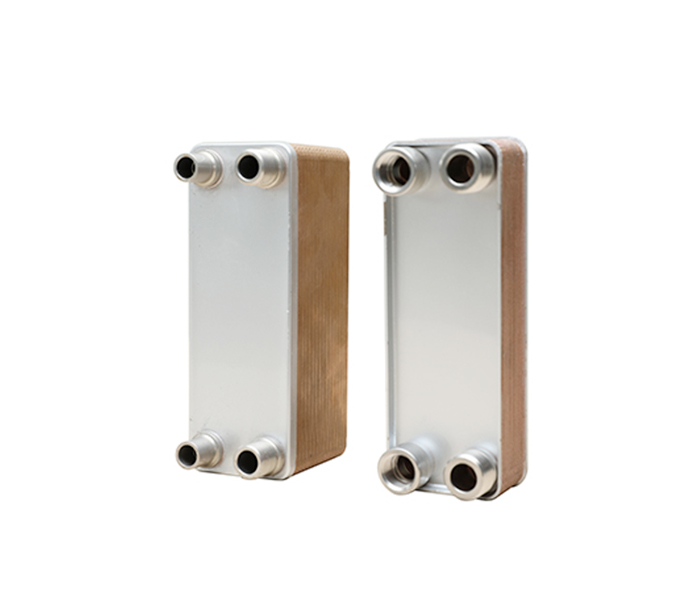

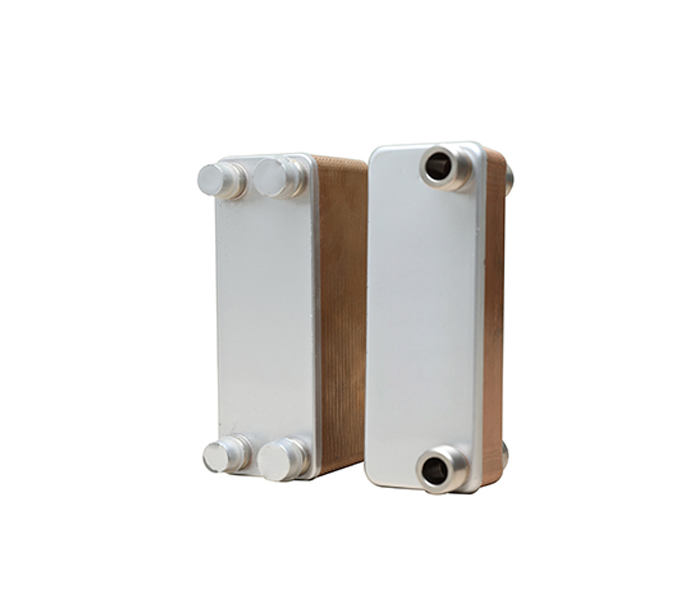

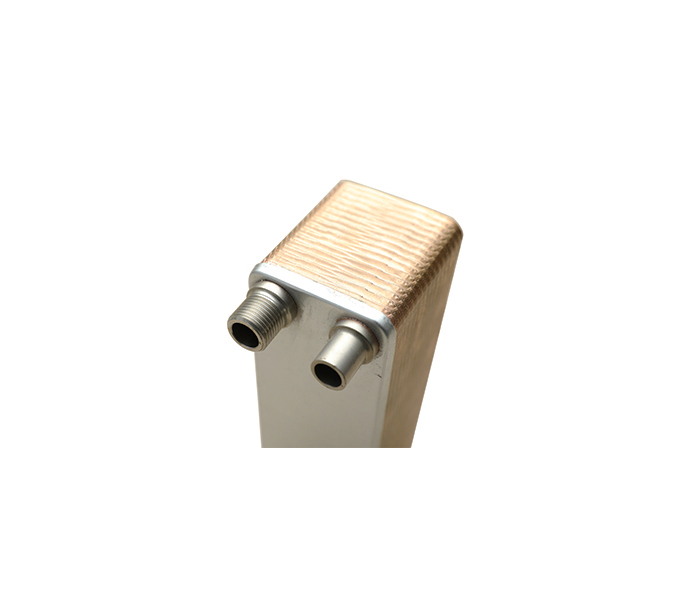

Model | Number | Design pressure 4.5 | Design pressure <3.0 | Weight(kg) | Volume(L) | Heat exchager area(m2) | |
A(mm) | A(mm) | F1F2side | F3F4side | ||||
FHC014 | n | 9+2.3n | 9+2.3n | 0.5+0.05n | 0.020*1/2n | 0.20*1/2(n-2) | (n-2)0.014 |
Design pressure(Mpa) | 3.0 / 4.5 |
Testing pressure(Mpa) | 4.5 / 6.75 |
Design temperature(℃) | -196~200 |
Max flow | 4m3/h |
Max plate numbers | 60 |
Max connection size | 3/4" |
Plate Material | SS304/SS316 |
Connection Material | SS304 |
Brazing Material | 99.9% pure copper/Steel |
Plate type | H / M / L |
Connection type | Threaded, Solder, Flange |
Approval | CE, UL, PED, ISO9001, ISO14001 |
Packing | EPE foam,carton or polywood case |
Mounting Bracket(Optional) | Studs, bracket, feet |
