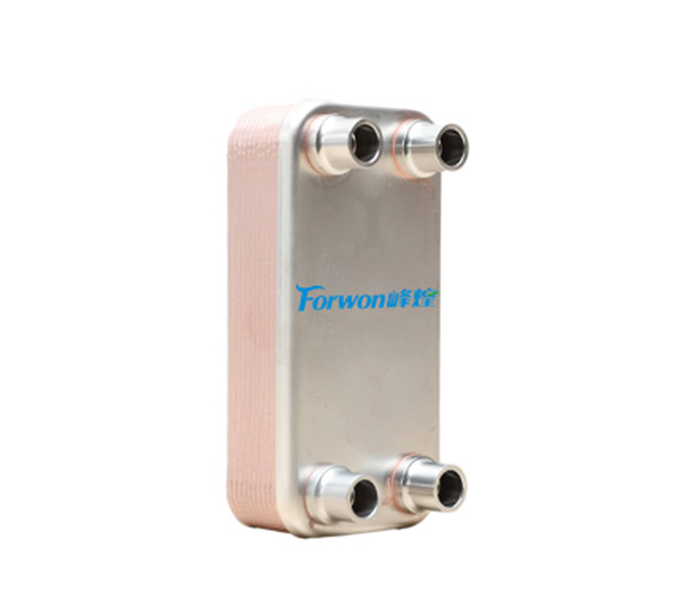

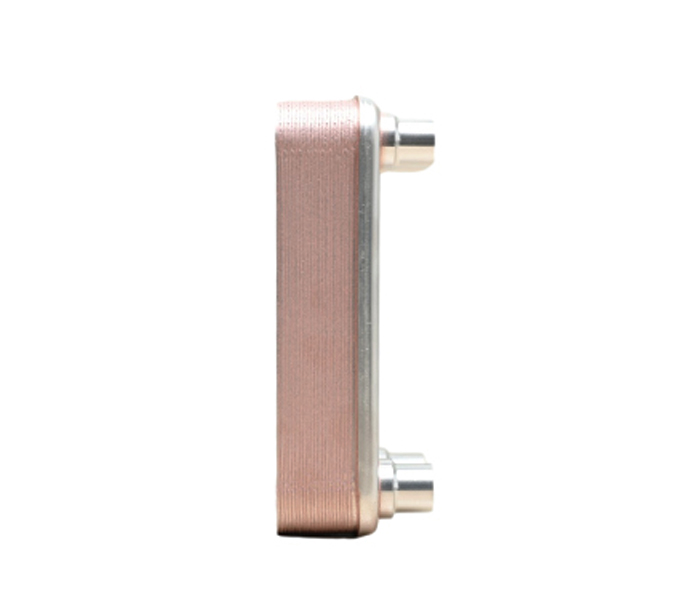

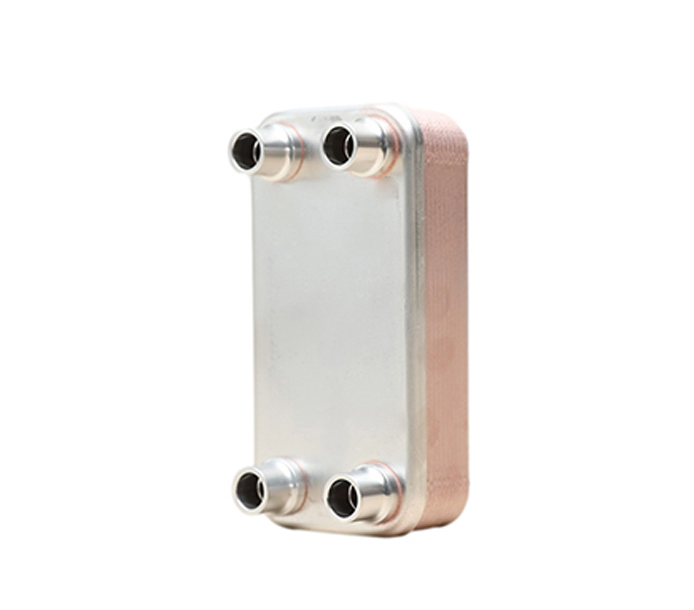

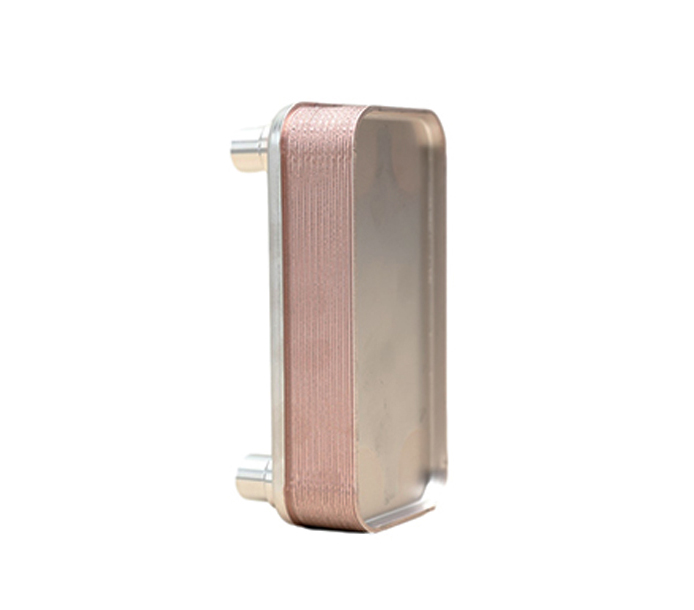

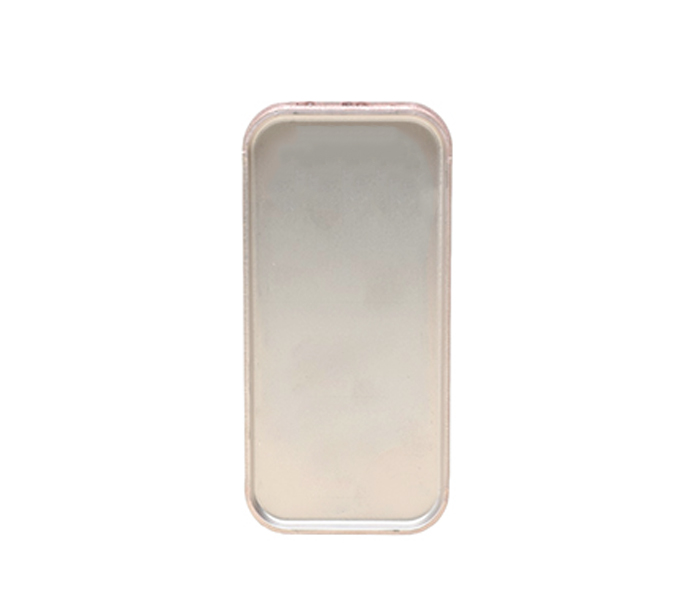

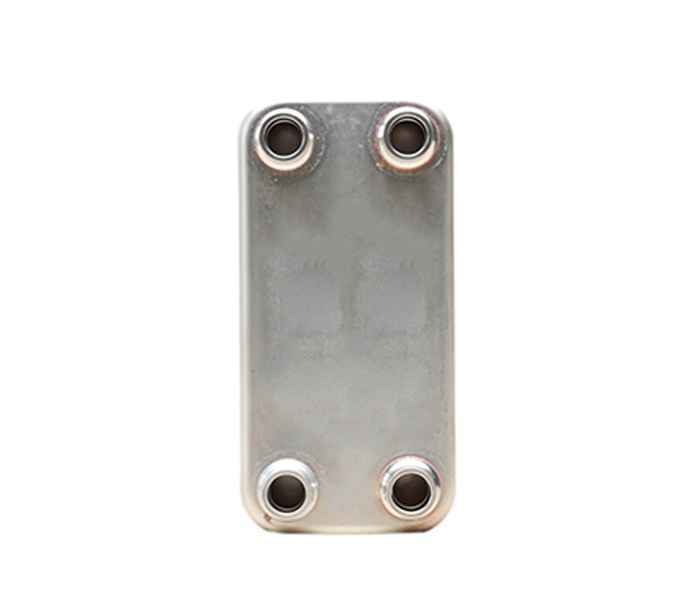

FHC008G

FHC008G provides a better solution for small size applications, with high heat transfer performance and compactness. The center distance of this product is close to that of conventional valves, and the tube is easy to customize, which makes it particularly suitable for new energy battery cooling systems and energy storage system. This improves the integration of the system. Of course, it is also applicable to the economizer of the heat pump system.
  • Specifications
Model Number Size Weight(kg) Volume(L) Heat exchager area(m2
A(mm) F1F2side F3F4side
FHC008G n 9+1.3n 0.28+0.023n 0.013*1/2n 0.013*1/2(n-2) (n-2)0.008

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃)  -196~200
Max flow 3m3/h
Max plate numbers 80
Max connection size 3/4"
Plate Material SS304
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
