Technical Dimension Data | |

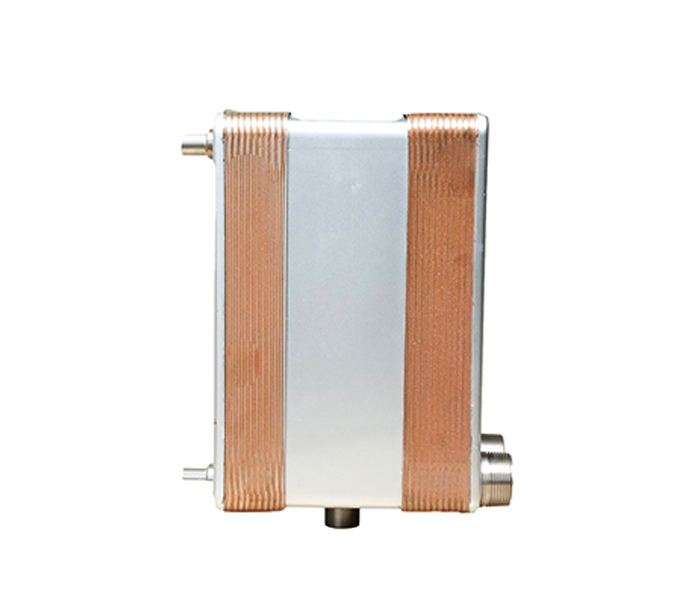

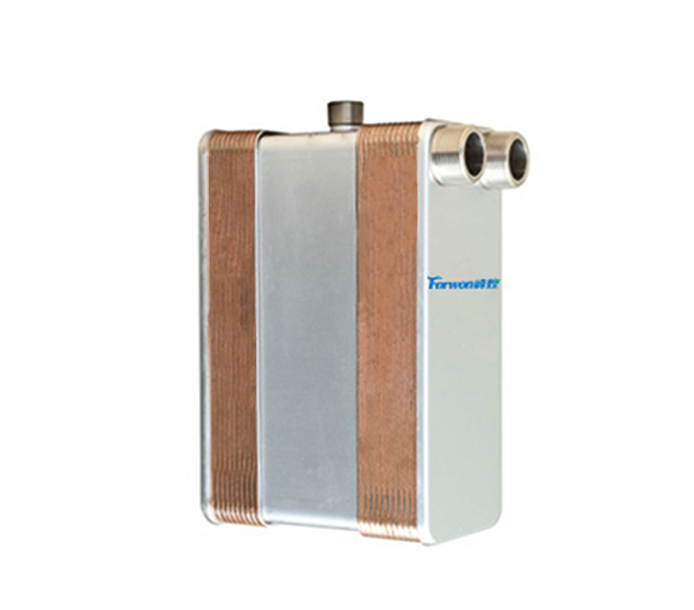

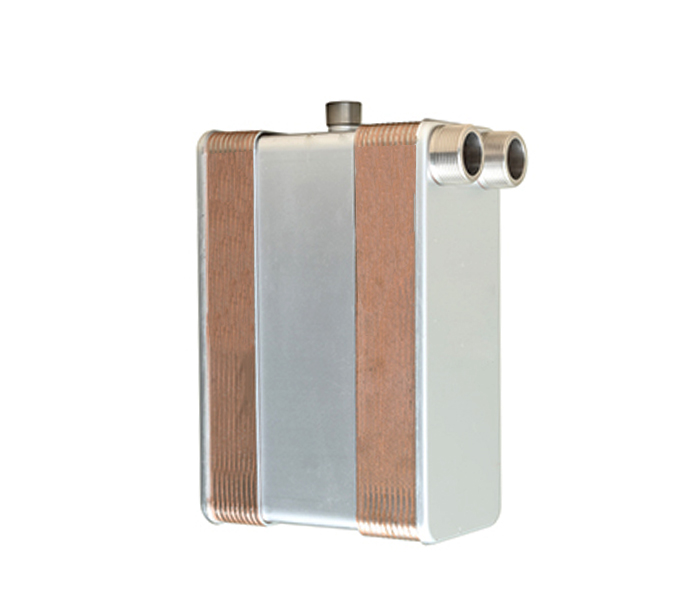

Model | FHC136Z |
Temperature | 200℃ |
Max working pressure ( Air ) | 10 |
Max working pressure ( Refrigerant )Min test | 30 |
pressure ( Air ) | 15 |
Min test pressure ( Refrigerant ) | 45 |
Air flow | Modeel | Heat Reecovery | Evaporator | C(mm) | E(mm) | B(mm) | D(mm) | Refrigerant Connection | Air Connection | |
Nm3/h | Scfm | |||||||||
425 | 250 | FHC136Z | 17 | 13 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
500 | 300 | FHC136Z | 21 | 17 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
700 | 400 | FHC136Z | 27 | 23 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
850 | 500 | FHC136Z | 31 | 27 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
1000 | 600 | FHC136Z | 35 | 31 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
1200 | 700 | FHC136Z | 43 | 39 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
1400 | 825 | FHC136Z | 49 | 45 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 2-1/2" |
1700 | 1000 | FHC136Z | 61 | 57 | 490 | 250 | 378 | 138 | 1/2" / 1-3/8" | 3" |
