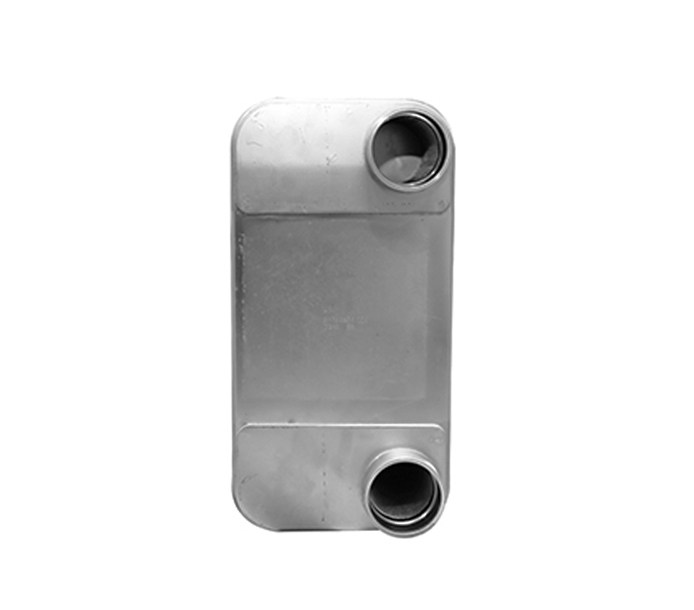

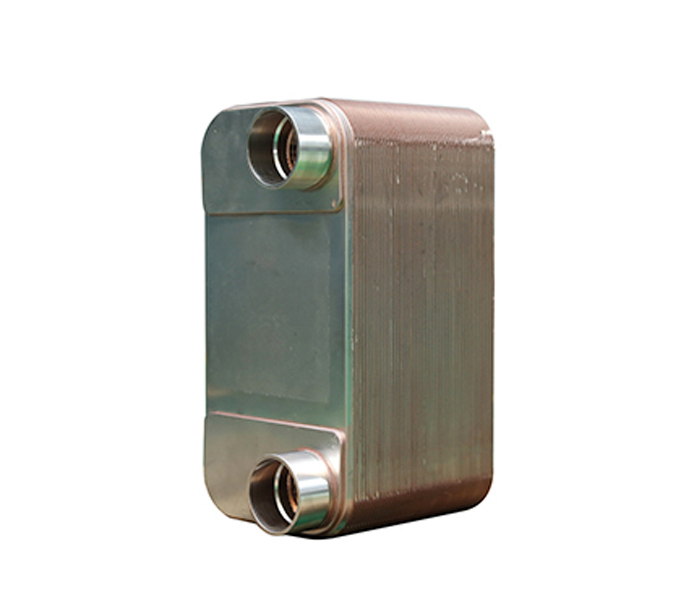

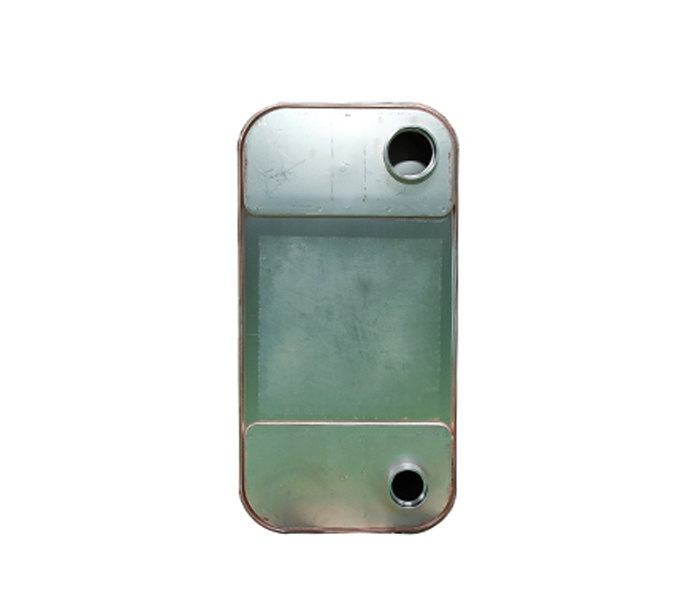

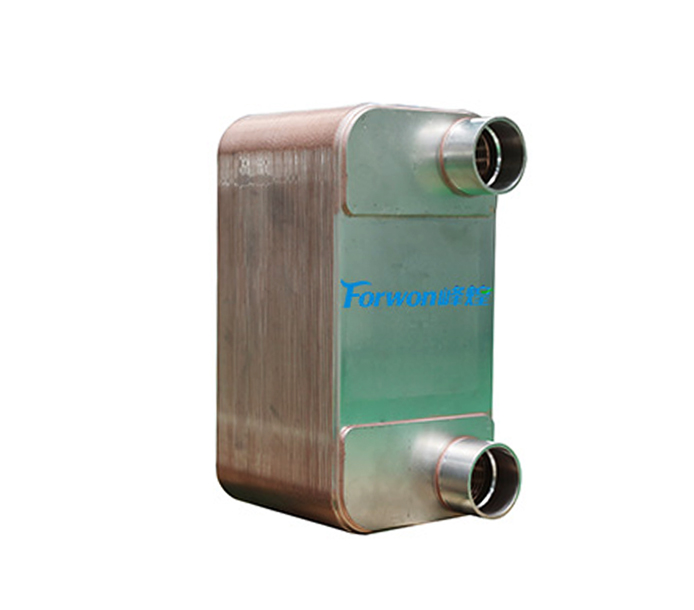

FHC136

The high-efficiency FHC136 runs in many demanding applications. The usual application areas are district heating stations and oil coolers. It is widely used in liquid-liquid and gas-liquid heat exchanging. This BPHE is the best choice for many industrial applications.
  • Specifications

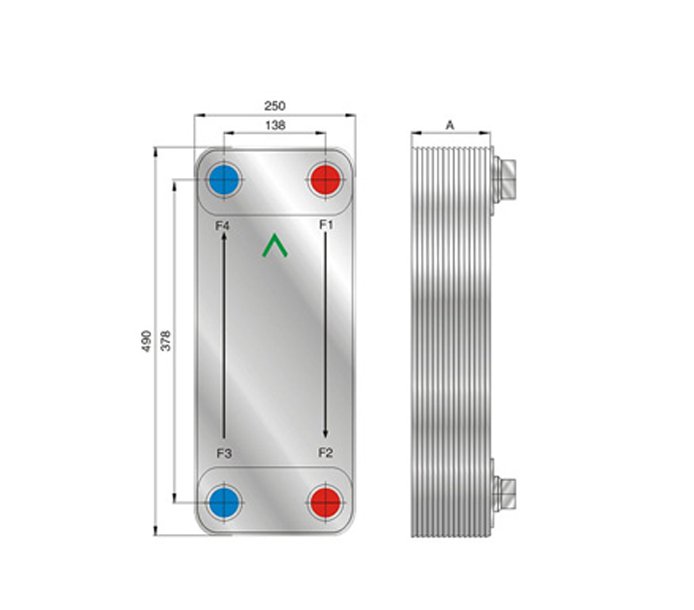

Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side (n-2)0.136
FHC136 n 15+2.85n 13+2.85n 6.5+0.42n 0.250*1/2n 0.250*1/2（n-2）

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 70m3/h
Max plate numbers 250
Max connection size 3"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
