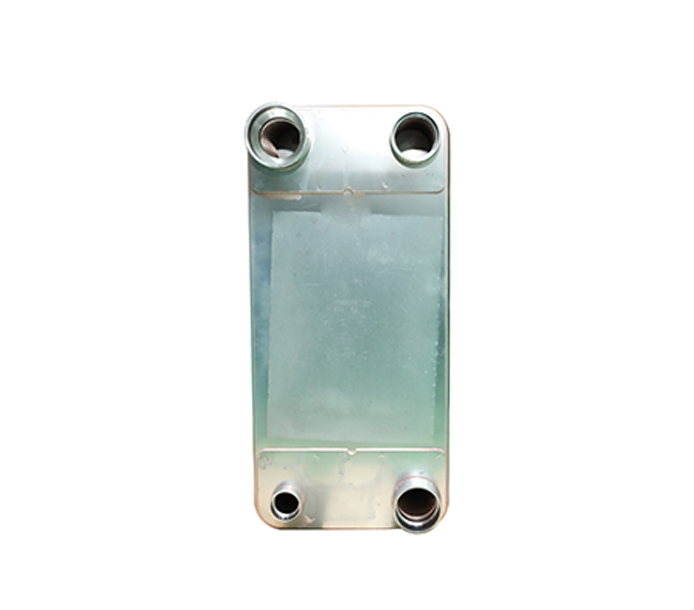

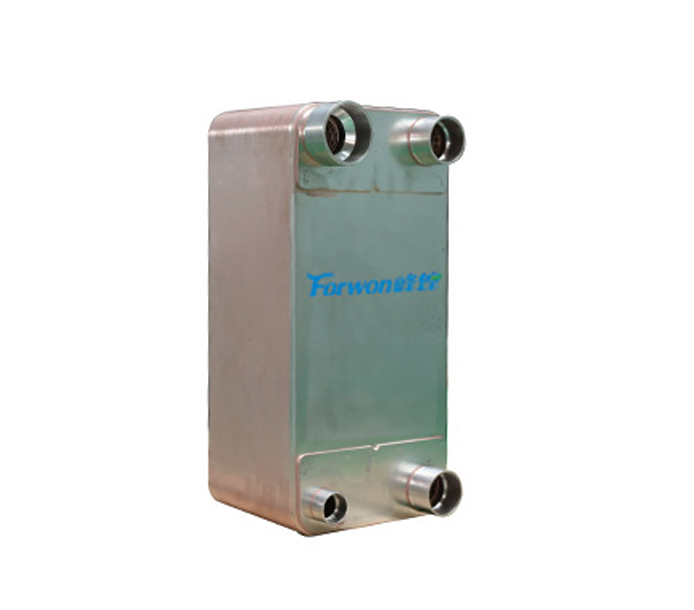

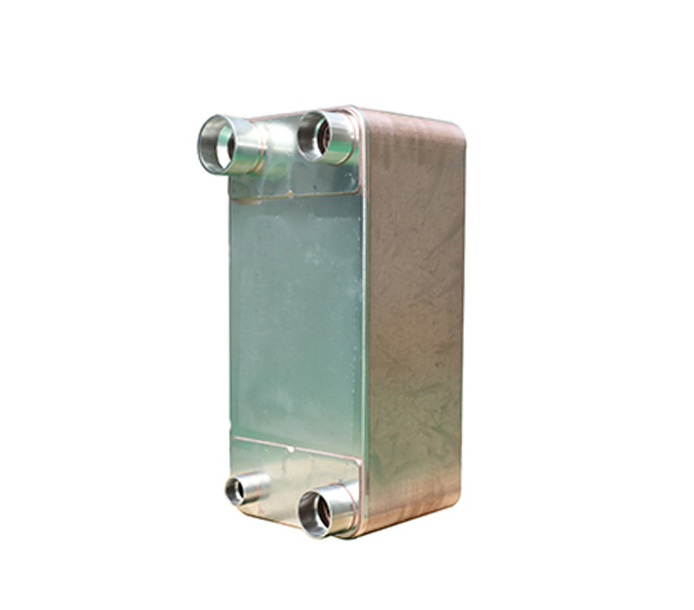

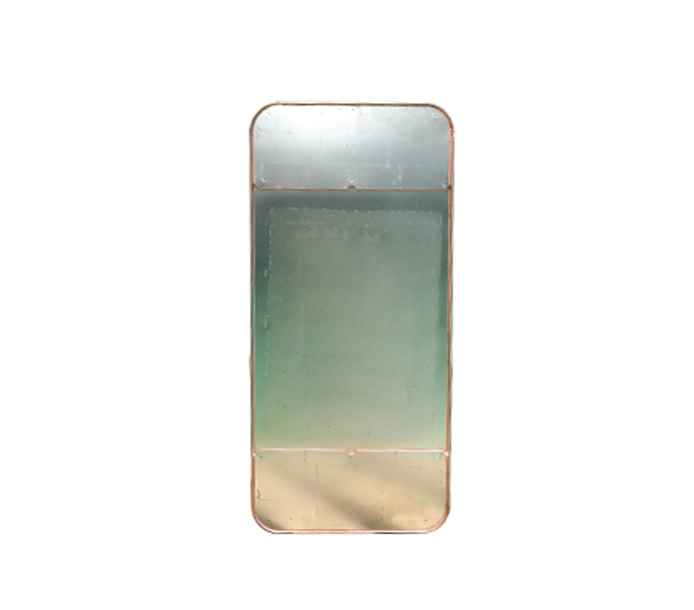

FHC120T

FHC120T, the high-performance heat exchanger, is specially developed for efficient operation and high heat transfer performance. This heat exchanger is the best choice for many coolers and high-efficiency heat pump systems.
  • Specifications
Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F6=F4F5side
FHC120T n 15+2.3n 13+2.3n 7+0.4n 0.241*1/2n 0.241*1/2（n-2） （n-2）0.120

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 40m3/h
Max plate numbers 200
Max connection size 1" 3/4
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
