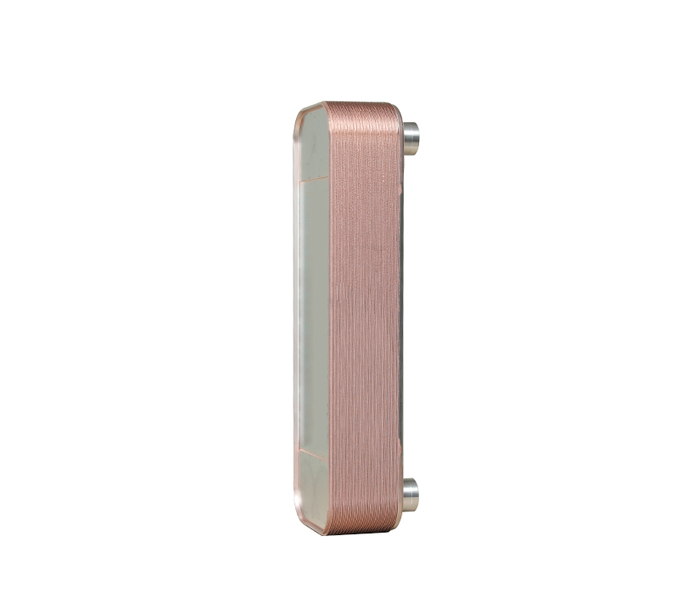

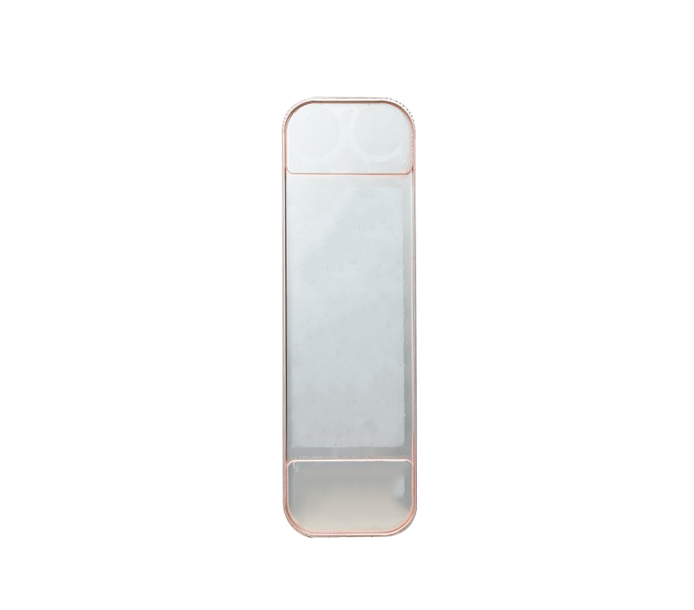

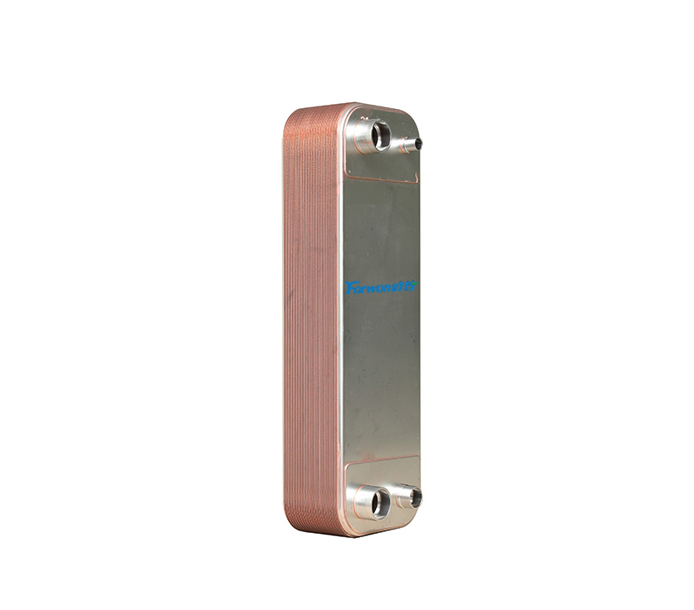

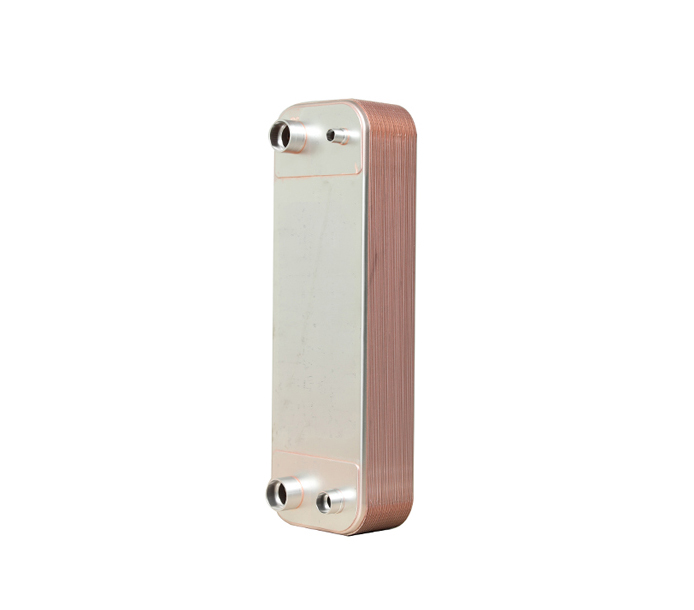

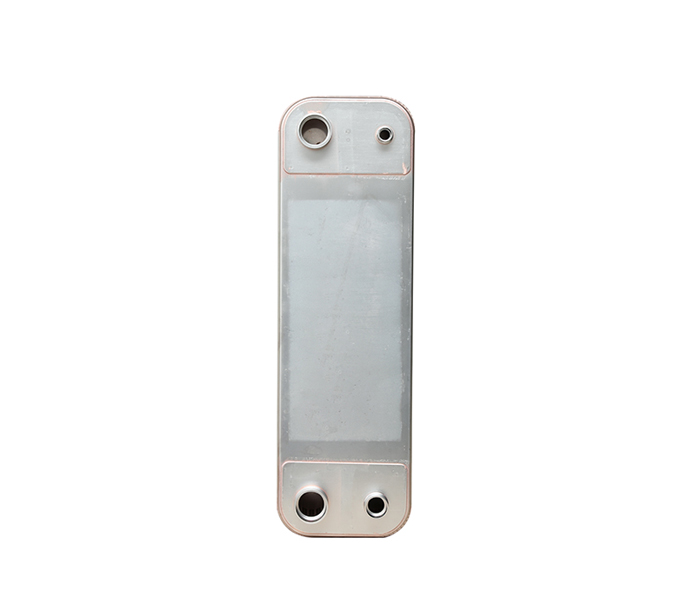

FHC095

FHC095 spans a wide heat exchange range and has a variety of plate types(H plate, L plate, and M plate, distributor design) with covering a wide flow resistance range. It can be applied as evaporator, condenser and economizer. It is widely used in heat pump system, oil cooler, water cooler, etc.
  • Specifications

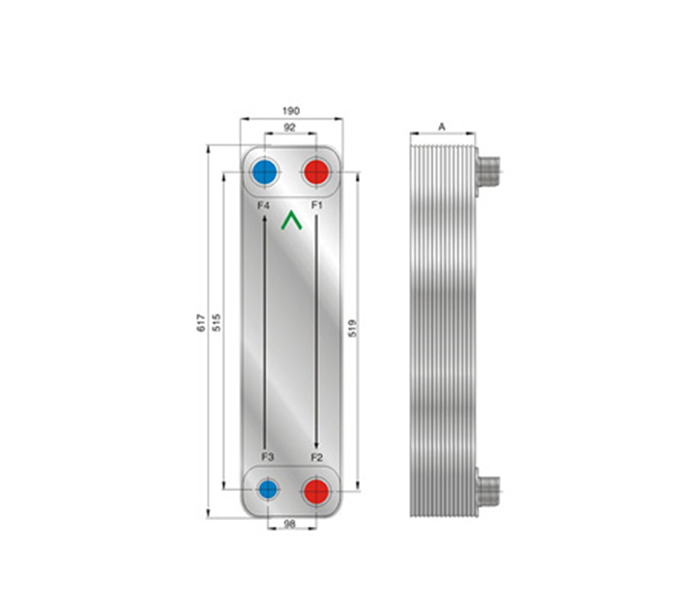

Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC095 n 15+2.4n 11+2.4n 4.6+0.44n 0.210*1/2n 0.210*1/2（n-2） （n-2）0.095

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 35m3/h
Max plate numbers 250
Max connection size 2"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H / M / L
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
